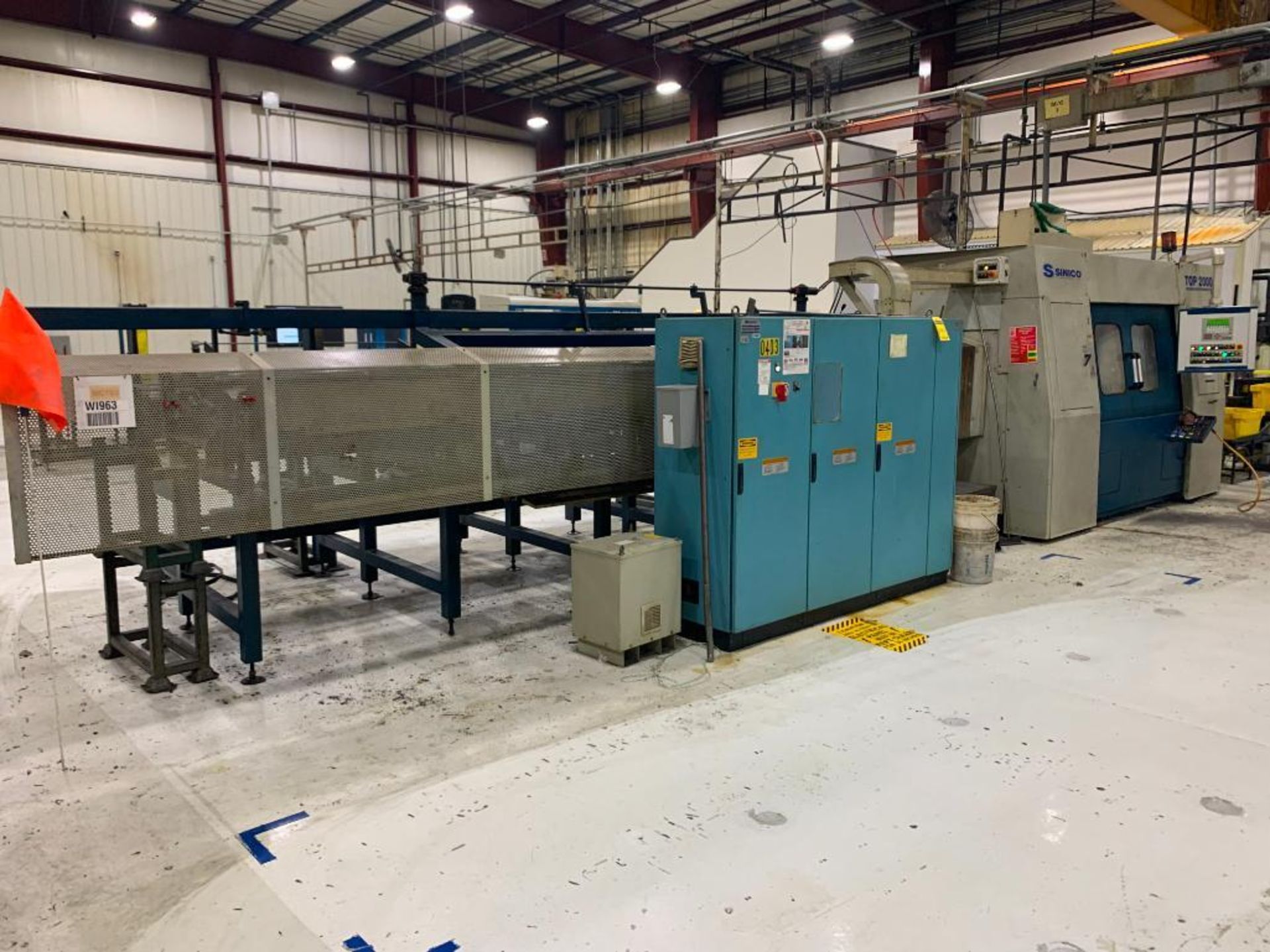

AM20999-Sinico Sin-O-Matic TOP2000 Twin Spindle CNC Cutting Machine

Price: $15,000.00
Stock #: AM20999

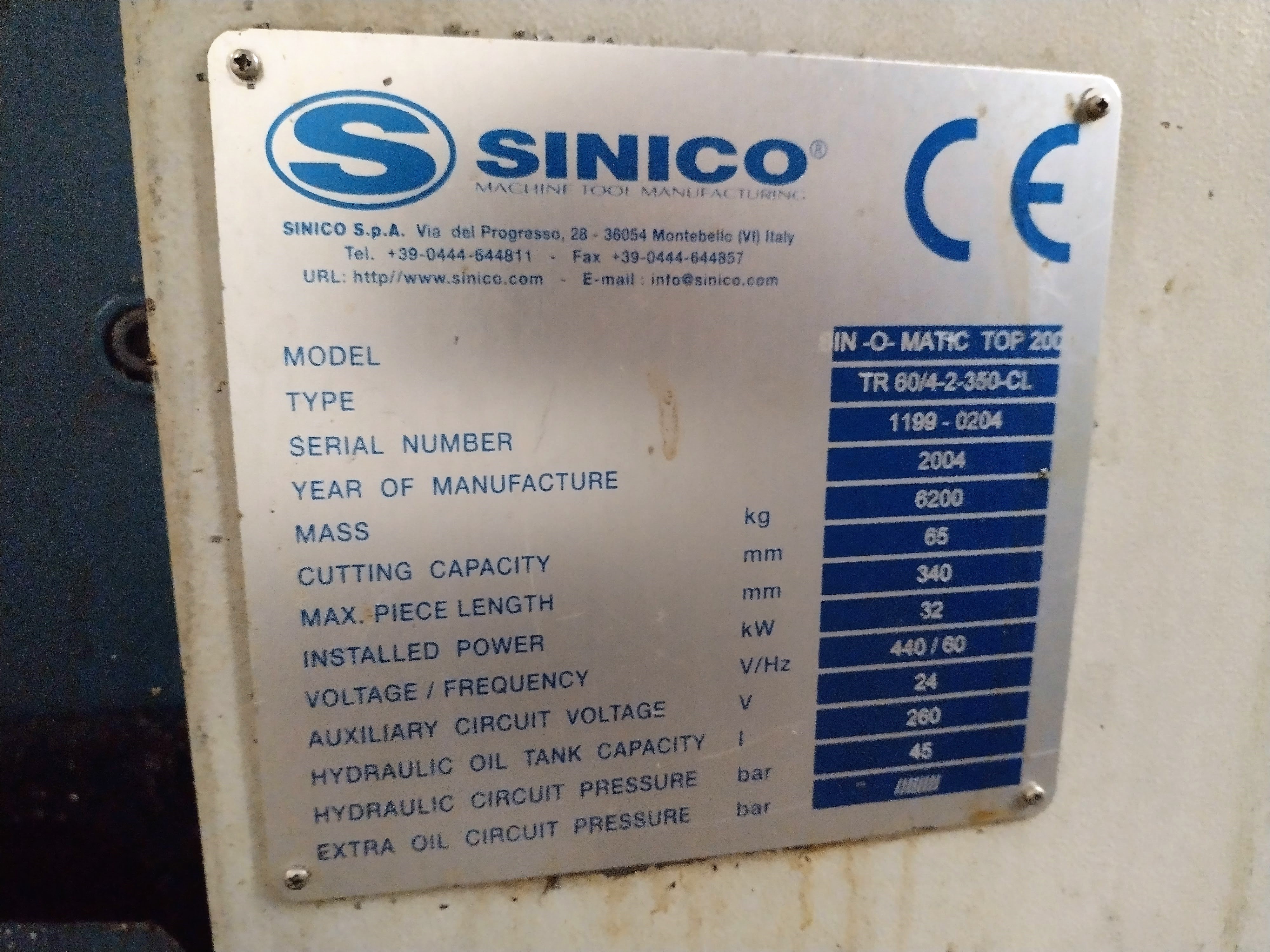

Model #: TR 60/4-2-350-CL
Make Year: 2004
Serial #: 1199-0204
Manufacturer: Sinico
Capacity: 65.0000

SINICO TOP2000CSV Twin Opposed Spindle Milling, Drilling and Cut to Length System - Used - AM20999

Model: Sin-O-Matic TOP2000

New in 2004!



Specifications:

Maximum Capacity: 65 mm
Minimum Capacity: 12 mm
Maximum cut length: 340 mm
Minimum cut length: 15 mm
Accuracy of cut: +/- 0.025"
Raw material infeed length: 25' (approx.)


Includes:
Multi-Axis CNC Controls
Servo controlled in-feed system
Multi-Station tube handler for double or single end-finishing
Integrated Chamfering/Deburring heads
Integrated drilling head
Multi-function live spindle heads for secondary operations
Bar/Tube Debundler/Material in feed rack
Conveyor outfeed rack
Programmable batch cut lengths



This item is available, subject to prior sale.
