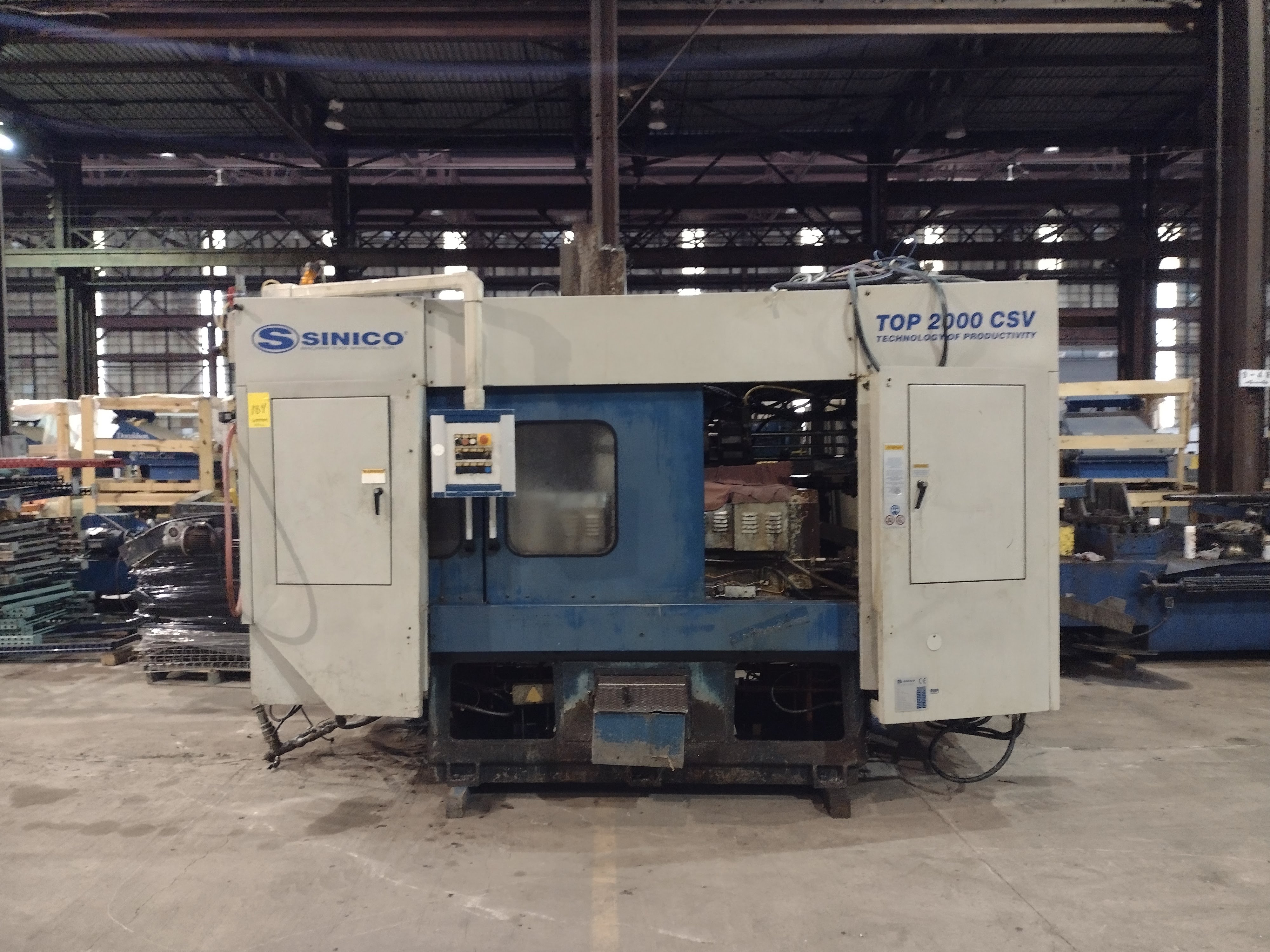

AM21001-Sinico Sin-O-Matic TOP2000 Twin Spindle CNC Cutting Machine

Price:	$13,000.00
Stock #:	AM21001

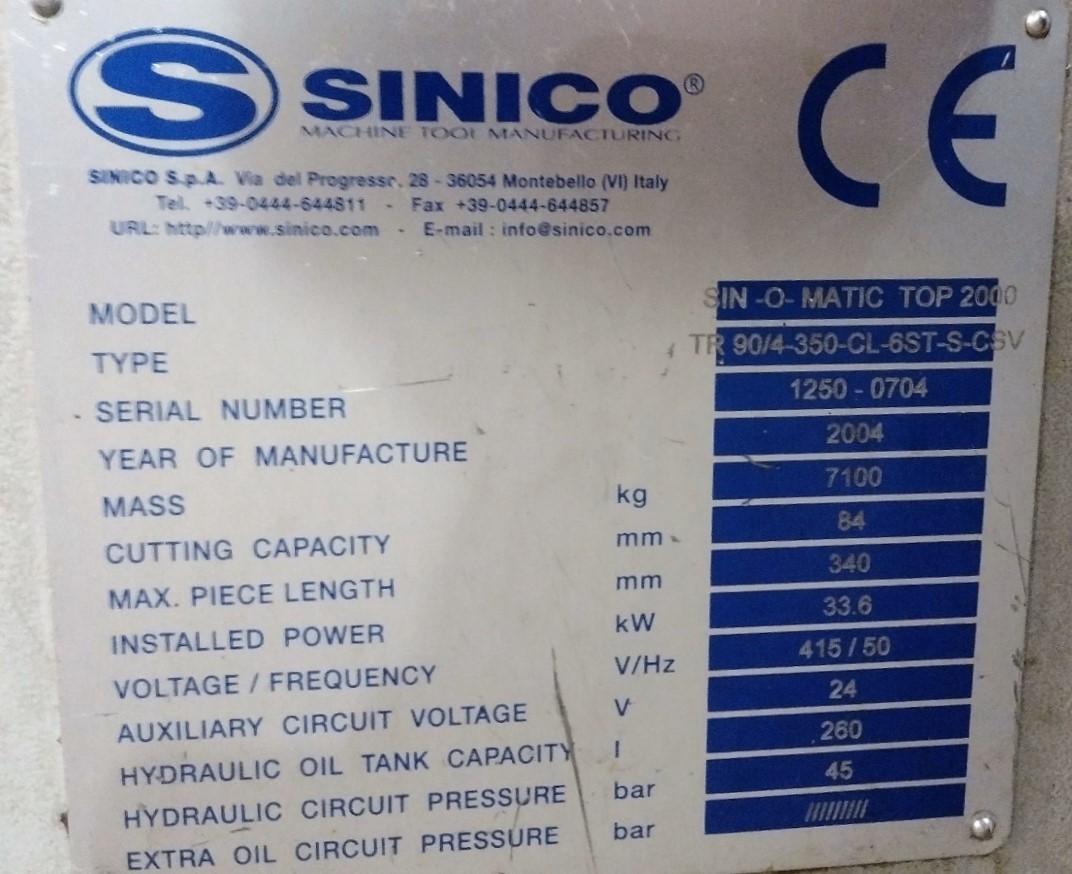

Model #:	R 90/4/350-CL-6ST-S-CSV
Make Year:	2004
Serial #:	1250-0704
Electrical:	415 Volts 3 Phase 50 Hz.
Capacity:	84.000

SINICO TOP2000CSV Twin Opposed Spindle Milling, Drilling and Cut to Length System-used-

Model: Sin-O-Matic TOP2000CSV Serial: 1250-0704 New in 2004!

Specifications (per mfg literature):

Maximum Capacity: 3.30"OD (84mm)
Minimum Capacity: .5"OD (12mm)
Maximum cut length: 13.39" (340mm)
Maximum bar/tube length: 255.9" (6,500mm)
Accuracy of Cut: +/- .025mm
Cutting Speed: 40-267 m/min
Blade Speed: 35-230 rpm
Blade Diameter: 14.5" (370mm)
Spindle Speed: 550-3000 rpm
Spindle feed speed: 0-4m/min
Spindle stroke: 3.14" (80mm)
Tool-holder shank: ISO 40

Includes:

Multi-Axis Controls

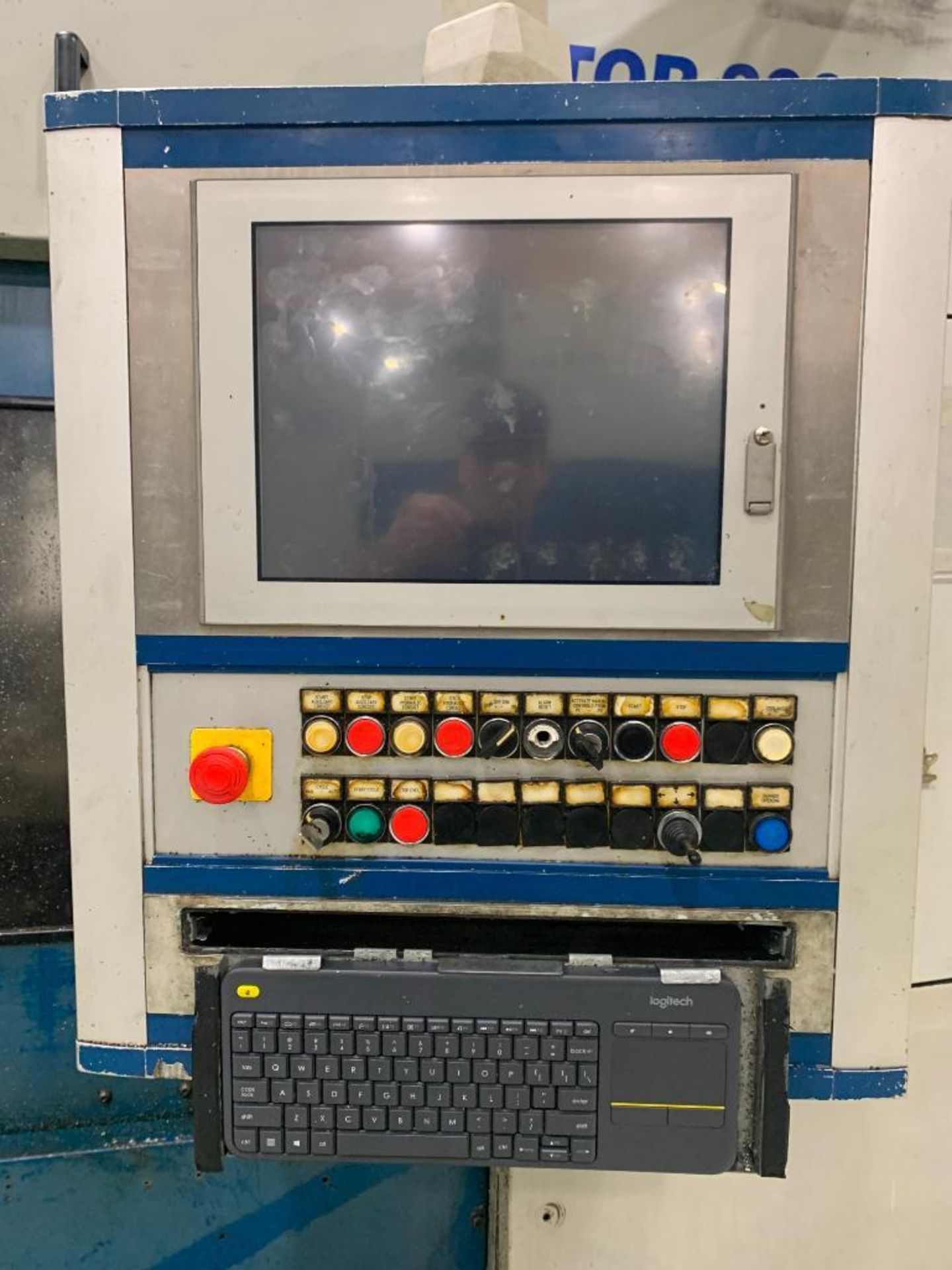

Touchscreen for programming and machine set-up
Encoder for accurate material feeding
6-Station rotary part transfer for end-finishing operations
Automatic machine and saw lubrication
Infeed rack/debundler
Chip conveyor
Outfeed conveyor

415 Volt, 60 Hz, 3 Phase
Foot-print: 40' x 10'

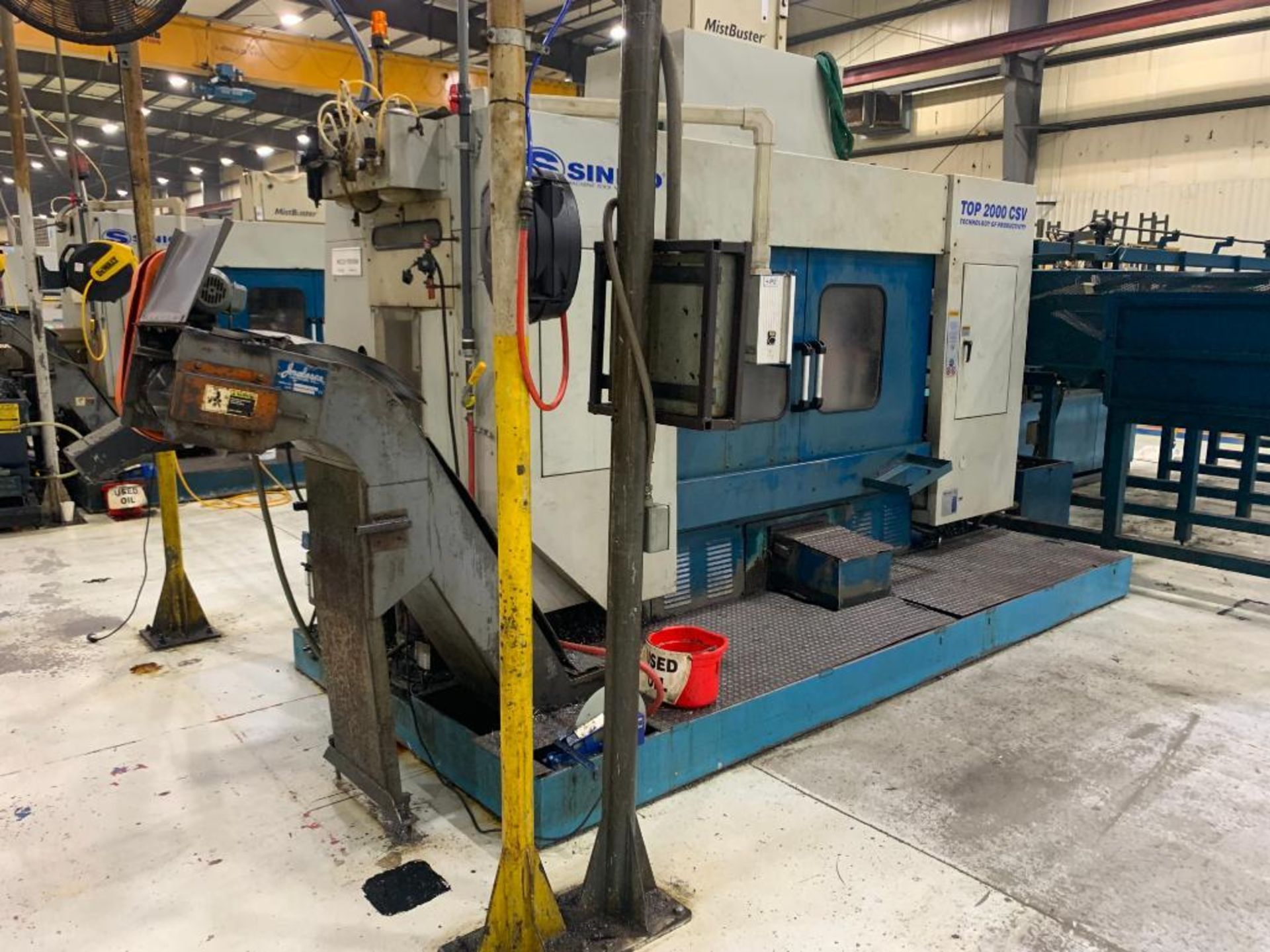

DISCOUNTED PRICE, AS PICTURED, LOADED ON TRUCK, FOB CLEVELAND, OHIO
