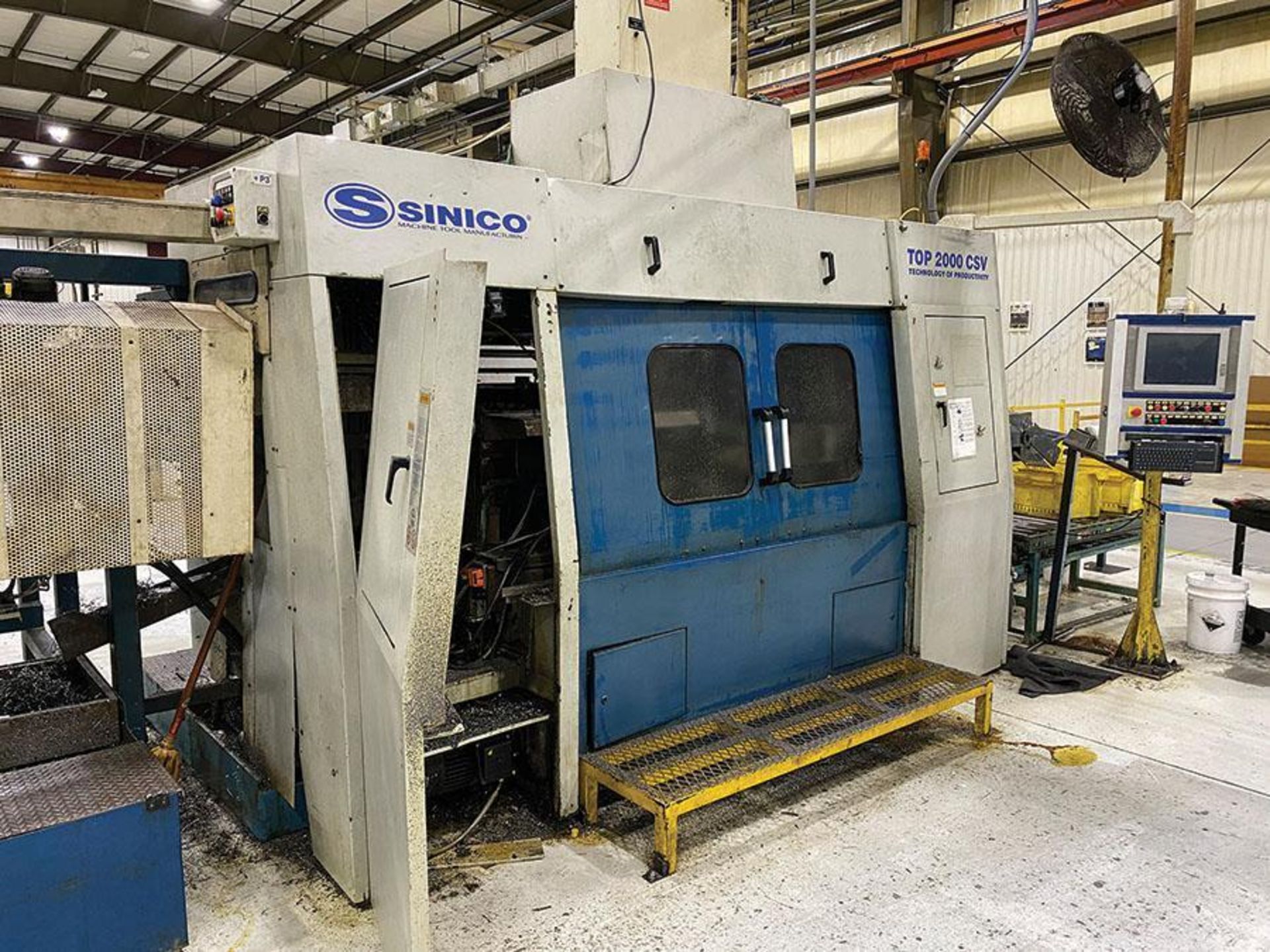

AM21002-Sinico Sin-O-Matic TOP2000 Twin Spindle CNC Cutting Machine

Price:	$19,500.00
Stock #:	AM21002
Serial #:	1279-0305
Electrical:	480 Volts 3 Phase 60 Hz.
Capacity:	80.00

SINICO TOP 2000 Twin Opposed Spindle Milling, Drilling and Cut to Length System-used-

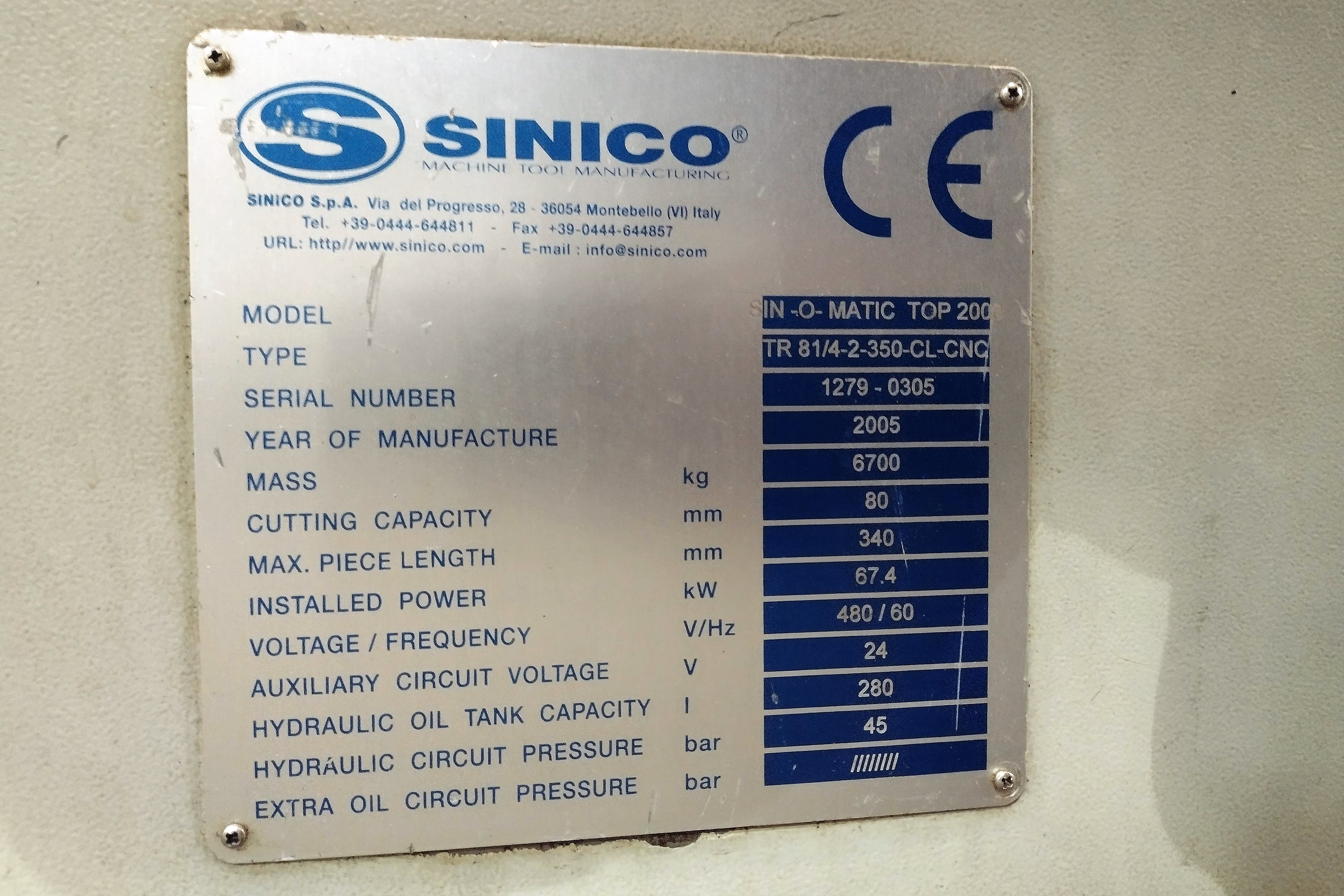

Model: Sin-O-Matic TOP2000 Serial: 1279-0305 New in 2005!

Specifications (per mfg literature):

Maximum Capacity: 3.14"OD (80mm)
Minimum Capacity: 0.50"OD (15mm)
Maximum cut length: 13.39" (340mm)
Maximum bar/tube length: 255.9" (6,500mm)
Minimum bar/tube length: 118.1" (3000mm)
Cutting Speed: 40-267 m/min
Blade Speed: 35-230 rpm
Blade Diameter: 14.5" (370mm)
Spindle Speed: 550-3000 rpm
Spindle feed speed: 0-4m/min
Spindle stroke: 3.14" (80mm)
Tool-holder shank: ISO 40

Includes:

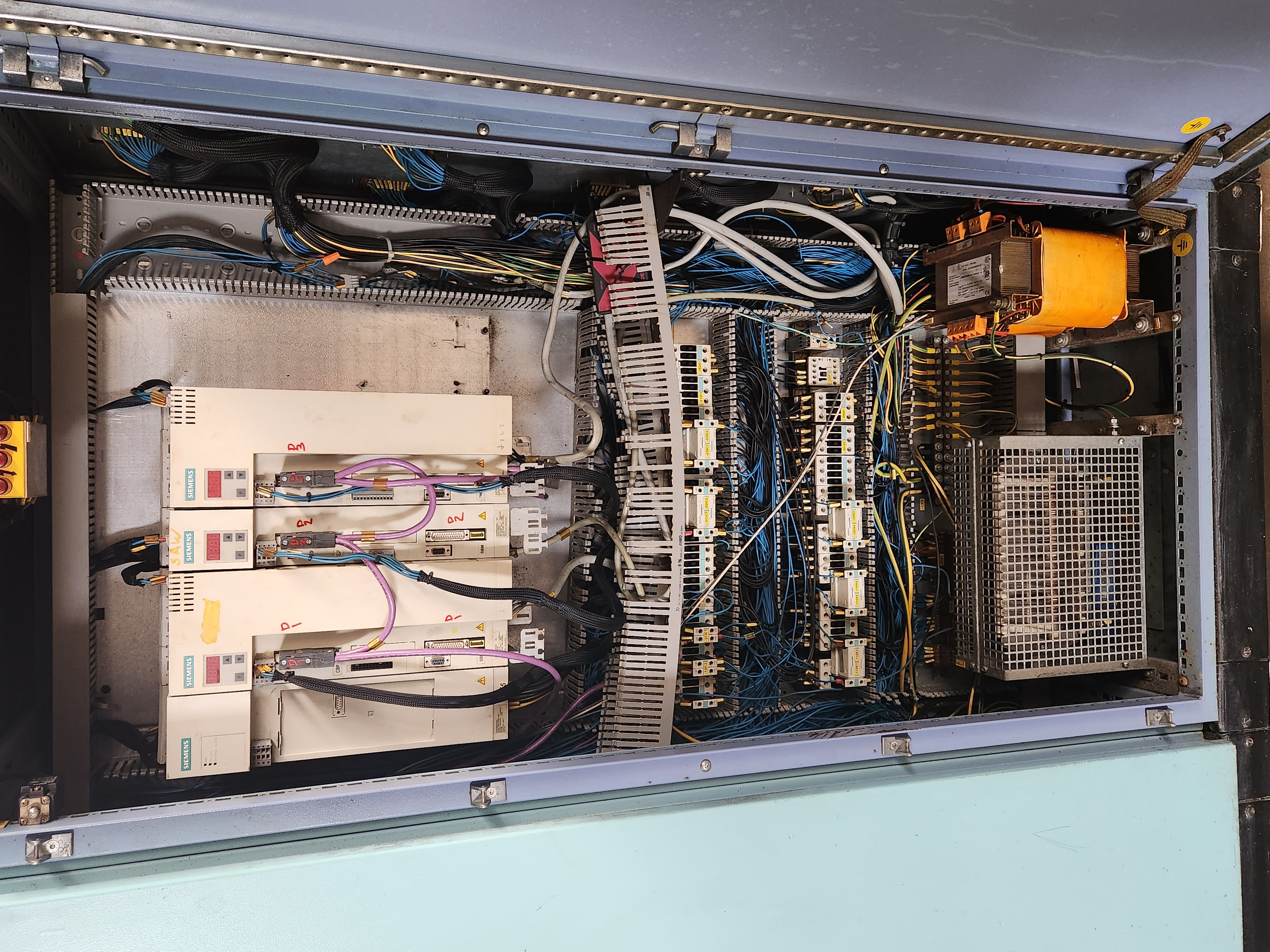

Multi-Axis CNC Controls
Touchscreen for programming and machine set-up
Encoder for accurate material feeding
6-Station rotary part transfer for end-finishing operations
Automatic machine and saw lubrication
Infeed rack/debundler
Chip conveyor
Outfeed conveyor

480 Volt, 60 Hz, 3 Phase
Foot-print: 40' x 10'

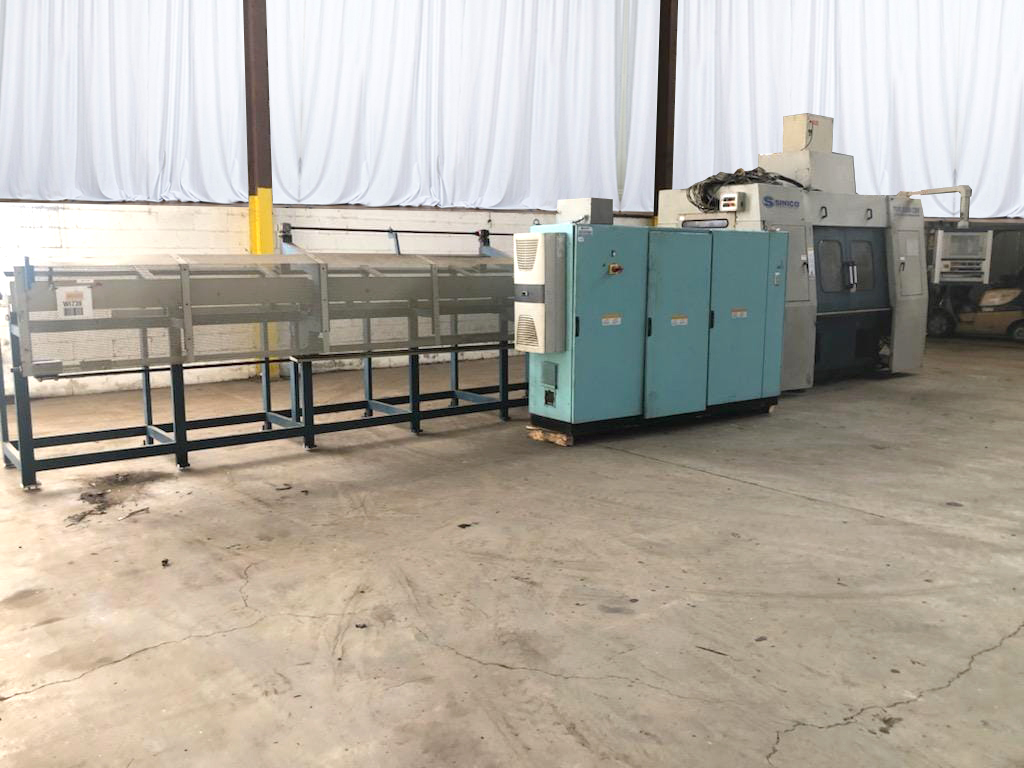

DISCOUNTED PRICE, AS PICTURED, LOADED ON TRUCK, FOB CLEVELAND, OHIO
