| Price: | $24,500.00 |
| Stock #: | AM24440 |

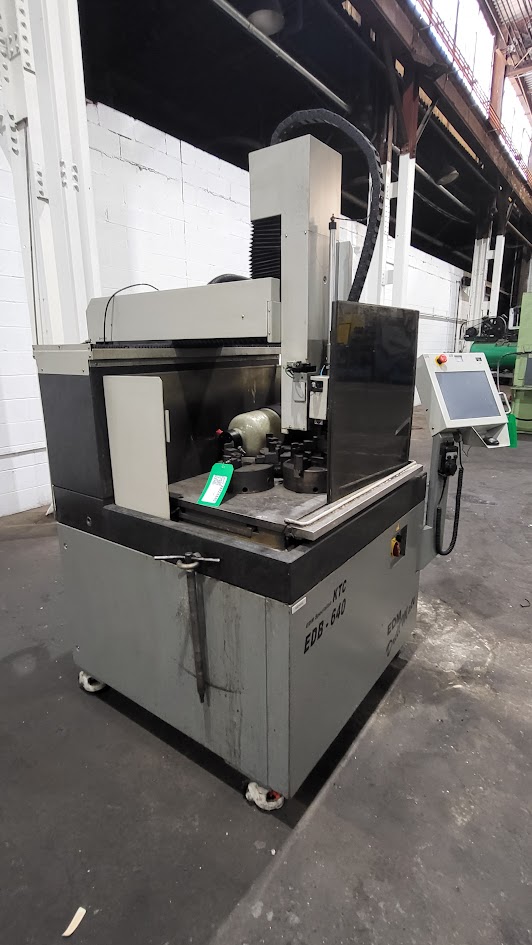

EDM Drill Mate EDB 640 CNC Hole Driller
Includes:
● Automatic Electrode Changer (0.25mm~3.0mm)
● Minimum size electrode capability: 0.08mm (electrode with .5mm shank)
● Dual Touch Screen - (15” Monitors)
● Windows 10
● Interactive Programming Function
● Real-Time Tool Path Display
● Program Management
● Variable Speed of Spindle
● Pattern Program Function
● Blind Hole Drilling (Tolerance Compensation)
● Incomplete Hole Search and Processing
● Auto Compensation of Electrode Wear
● Auto Assist Guide
● Real-Time Self-Diagnosis
● Dry Run Simulation Function
● Backlash Compensation
● Stored Pitch Error Compensation
● Create NC Code for AutoCad 2016 File (DWG/DXF)
Machine Specifications
● Automatic Electrode Changer -Standard/400mm Electrode Length
● Max. work-piece size height-10.6”
● Max Workpiece Weight-881 lbs.
● X - Y table stroke - 23.6 x 15.7
● Z axis stroke - 9.84”
● W axis stroke-10.63”
● Usable electrode diameter - 0.08 ~ 0.0031” ~ 3mm
● Usable electrode length-200(mm)/300(mm)/400(mm) ~ 7.86” - 11.81” - 15.7”
● Net Weight: (Approx) - 3,500 Lbs
This item is available, subject to prior sale.
All freight & transportation charges are the buyer's responsibility. Please specify your freight carrier of preference and we will ship it billed to your account. Otherwise we can assist with getting a competitive freight rate and add it to the invoice once you approve the amount.
We do not charge fees for standard palletizing, handling or loading. However, we will have to charge a fee if special domestic palletizing or crating is required. Please also note that some domestic freight companies now require crating and we have to pass this along.
International crating and certifications are processed separately and must be approved prior to purchase.
Unless specified, all shipments are F.O.B. one of our two Cleveland, Ohio Area Locations: Brook Park, OH 44142 & Warren, OH 44484
